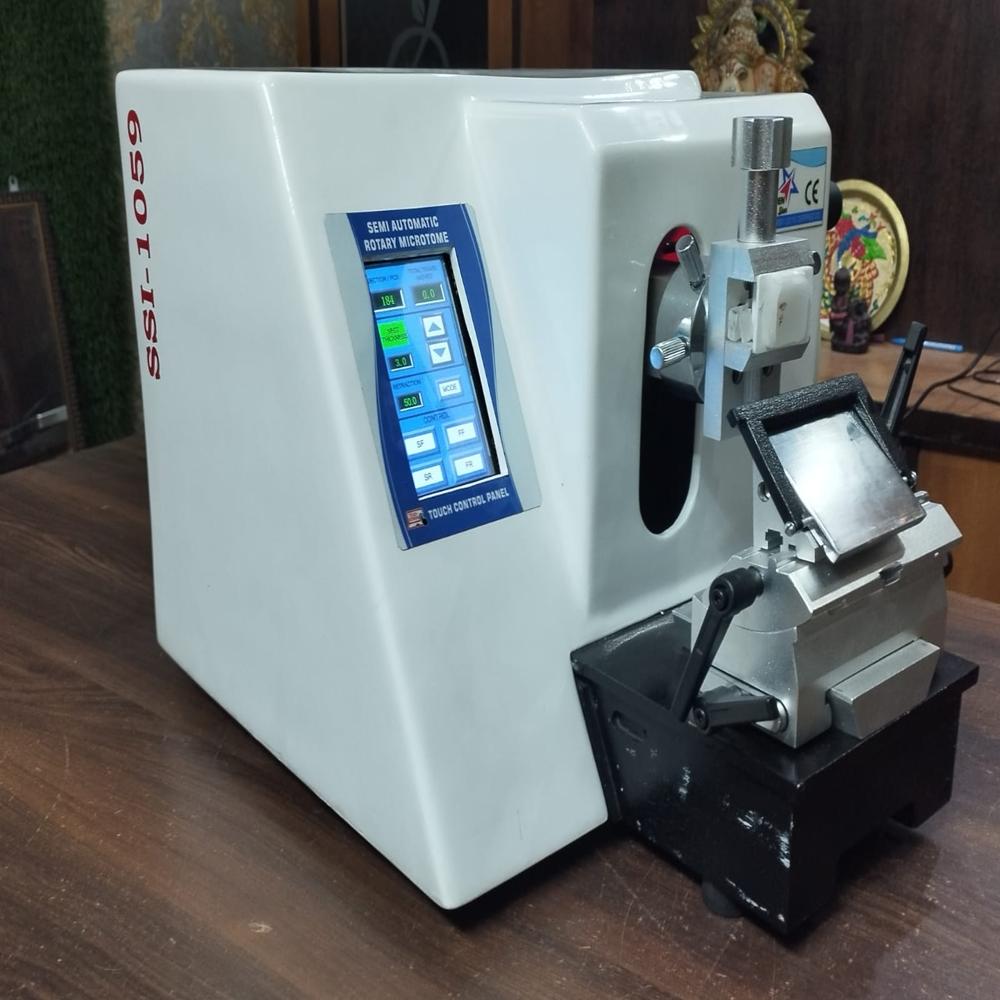

SEMI AUTOMATIC ROTARY MICROTOME/SSI-1059

Semi Automatic Rotary Microtome SSI-1059 provides utmost reliability, user benefit and outstanding operator comfort. Great basic stability and precision, make this microtome a real multi-purpose instrument that meets the requirements both in paraffin and hard sectioning techniques of the biological, medical and industrial lab.

FEATURES:

• The HMI Screen Show The Slice And Trimming Thickness, Section Counter, Keyboard With Controls For Thickness, Mode And Speed.
• Special function of specimen retraction which avoid the damage due to the attrition between sample and the back of knife so that the sectioning is more smooth and the life of the knife is more longer.
• The hand wheel can be locked in any position to ensure the sectioning as safe and convenient as possible.
• The waste tray can be disassembled easily.

TECHNICAL DATA: -

• Ranges of Thickness : 0 um to 60 um
• Increments : 0.5 um to 60 um
• 1 m steps from 1 um to 99 um
• Electronically adjustable.
• Trimming thickness : 0 um  to 60um
• Horizontal Specimen Advance : 28 mm
• Vertical stroke : 60 mm
• Specimen retraction : 0 um to 20 um
• Specimen Size : upto 30 mm X 30 mm
• Specimen Orientation : X and Y Axis 8, Z Axis 360
• Specimen advance automatic : In 2 speeds
• Mechanism : Motorized fed mechanism with manual cutting Options
• Electrical data : 230 Volts, 50 Hz, Single phase AC
• Weight : 35 kg approx.

SUPPLIED COMPLETE IN ALL RESPECT WITH THE FOLLOWING ACCESSORIES:

• Cassette holder,
• Section waste tray,
• Microtome blade 01 pkt
• Universal Clamp Holder
• Dust Cover
• Clean Brush
