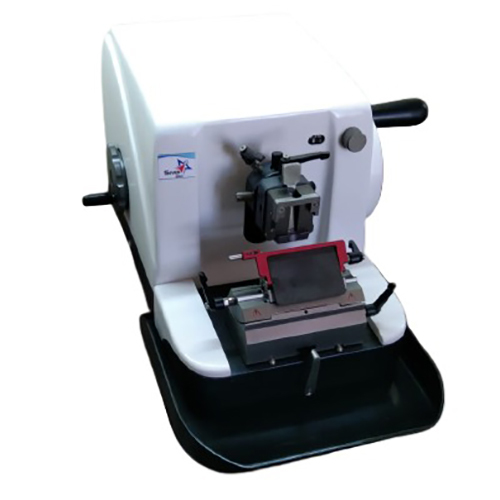

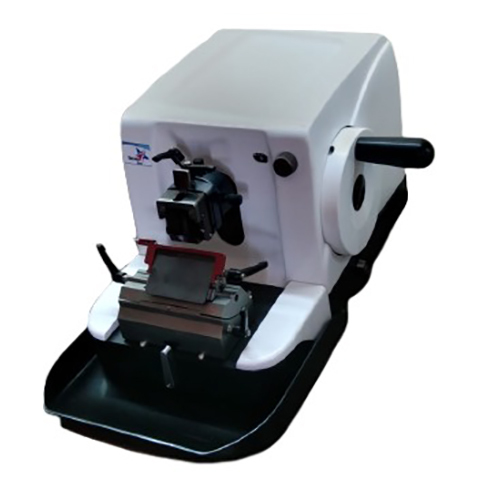

ROTARY MICROTOME - ADVANCE/SSI-1011

The rotary microtome SSI-1011 is ideal for most routine histology, biological and industrial needs. High precision & stability ensures exact reproducible section quality in wax embedded sections. Key components such as guide rail, screw mandrel, ratchet rod are import .

FEATURES

• High precision specimen feed
• Two types of specimen clamp: standard specimen clamp and universal clamp
• Extremely smooth running force compensation system
• Spacious section waste tray
• Ergo-handwheel handle
• The hand wheel can be locked in any position.

TECHNICAL DATA

• Ranges of Thickness : from 0um to 60um
• Increments : 0 um from 1 um to 2um
• 1 m from 2 um to 10um
• Horizontal Specimen Advance : 30 mm
• Vertical stroke : 70 mm
• Specimen Size : upto 30 mm X 30 mm
• Specimen Orientation : X and Y Axis 8 Z Axis 360
• Fine Advance : Manual Via hand wheel Safety
• Lock integrated in hand wheel
• Coarse Advance : Manual via hand wheel
• Standard : Side positioned wheel
• Ambient Condition : 10C to 50C
• Weight : 45 kg approx.

SUPPLIED COMPLETE IN ALL RESPECT WITH THE FOLLOWING ACCESSORIES:

• Blade holder high profile disposale Blade
• Cassette holder
• Section waste tray
• Microtome blade 01 pkt
• Rexine cover
• Clean Brush

OPTIONAL ACCESSORIES:

• Universal clamp holder
