SSI- 1010 ROTARY MICROTOME - LIPSHAW TYPE

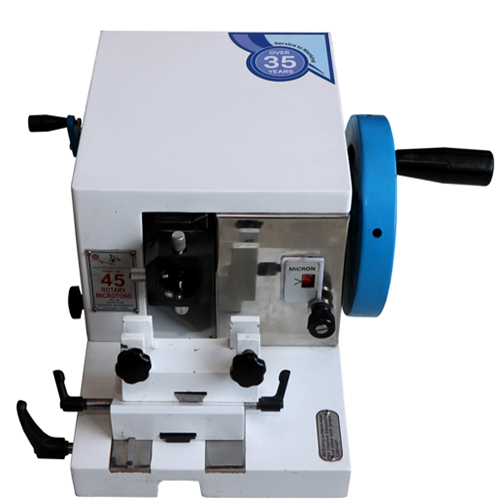

ROTARY MICROTOME  - LIPSHAW TYPE

The unit is provided with effortless manual sectioning via a counter balanced exceptionally Smooth- running wheel, manual feed mechanism and feed release. Light M.S. Powder coated hinged cover, protects the internal mechanism. Sliding mechanism is extra large for holding harder tissues more precisely. Smooth operation and extremely versatile for uniform serial sectioning.

TECHNICAL DATA:

Ranges of section thickness                : 0 μm to 50 μm

Setting values                                        : 1 μm to 2 μm

Section thickness                                : Viewing Window

Coarse Feed                                       : Manual via coarse feed wheel

Horizontal stroke                                : Approx. 30 mm

Vertical stroke                               : Approx. 70 mm

Specimen orientation                           : Horizontal: 8°, Vertical: 8°, Z 360°

Weight                                                   : 55 kg approx.

Optional Accessories                           : Disposable Blade Holder & microtome

SUPPLIED COMPLETE IN ALL RESPECT WITH THE FOLLOWING ACCESSORIES.

⦁ One knife 120 mm long with Back and Handle in Wooden box.

⦁ One bottle of lubrication oil

⦁ Dust cover

⦁ Clean Brush
