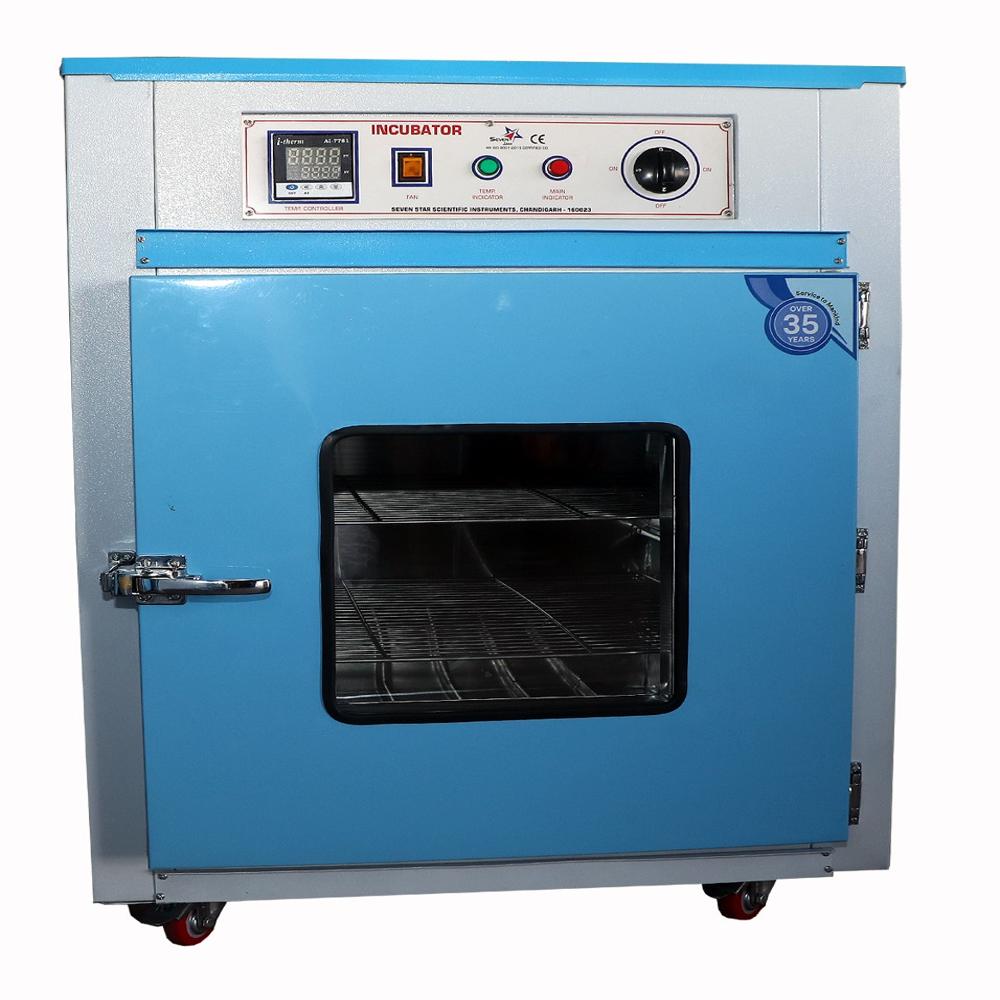

Bacteriological Incubator

About Bacteriological Incubator

Bacteriological incubator/SSI-1048

Bacteriological incubator is mainly used in drying of slides tissue culture incubation of anti body paraffin embedding incubation of hydroxy crystallization and microbiological determination

FEATURES

SSI incubators are sturdy with double walled construction with complete

Inner chamber made of highly polished stainless steel

Outer chamber is made of Mild Steel Sheet finished with powder coated paint

Heating elements are made of high grade imported nichrome wire properly insulated and are generally placed at the bottom and both side ribs for uniform temperature all over the space

Door gasket made of silicon moulded instead of Asbestos

TECHNICAL SPECIFICATIONS

SSI 1048 T THERMOSTAT

Ambient Temp range Room temperature to 110 C

Controller Thermostat

Temperature Accuracy in C 2C

Thermometer LShaped

Insulation Glass Wool

Availability of double glass window on door Yes

Type of Shelves Removable

Switch ON OFF

Indicator 2

Number of shelves 23

Power Supply 220V single phase 50 Hz

AC supply

SSI 1048 D PID CONTROLLER

Ambient Temp range Room temperature to 110 C

Controller Microprocessor BASED PID

Temperature Accuracy in C 1C

Type of display LEDLCD

Insulation Glass Wool

Availability of double glass window on door Yes

Type of Shelves Removable

Number of shelves 23

Power Supply 220V single phase 50 Hz AC

supply

CAPACITY AVAILABLE IN BOTH MODELS

CAPACITY IN LITRE

W X H X D INCH

LOAD Kw

28

12 x 12 x 12

050

45

14 x 14 x 14

050

95

18 x 18 x 18

100

125

18 x 24 x 18

100

224

24 x 24 x 24

150

252

24 x 36 x 18

150

336

24 x 36 x 24

150

These sizes are provided with air circulating fan as standard feature

OPTIONAL ACCESSORIES

Air circulating fan

Micro processor based PID temp controllercumindicator in lieu of thermostat LShaped thermometer

Timer
