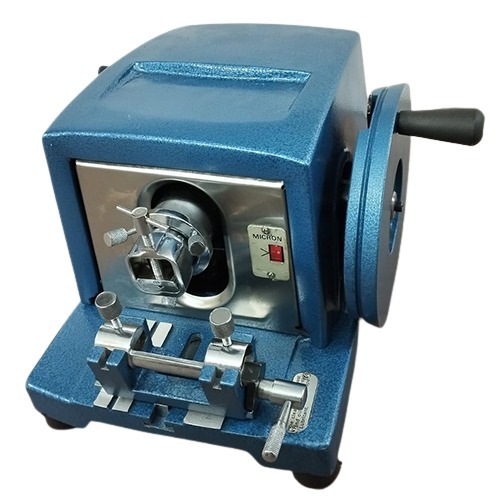

SSI-1009 ROTARY MICROTOME - A.O. SPENCER TYPE

ROTARY MICROTOME  -  A.O. SPENCER TYPE

For highest permanence, correctness and soothe stability is vital in manual microtome and  SSI- 1009 live upto workload requirements of even the demanding laboratories. The superior precision of new accessories will add up expediency to block to knife approach as well as specimen point of reference.

TECHNICAL DATA:

Ranges of section thickness       : 0 μm to 50 μm

Setting values                                 : 1 μm to 2 μm

Section thickness                         : Viewing Window

Coarse Feed                                 : Manual via coarse feed wheel

Horizontal stroke                         : Approx. 28 mm

Vertical stroke                         : Approx. 60 mm

Specimen orientation                       : Horizontal: 8°, Vertical: 8°, Z 360°

Weight                                              : 40 kg approx.

Optional Accessories                  : Disposable Blade Holder & microtome blades

SUPPLIED COMPLETE IN ALL RESPECT WITH THE FOLLOWING ACCESSORIES.

⦁ One knife 120 mm long with Back and Handle in Wooden box.

⦁ One bottle of lubrication oil

⦁ Dust cover

⦁ Clean Brush
